Channel Drains vs. French Drains: Which Is Right for You?

If you're facing yard flooding, pooling water near your foundation, or waterlogged landscaping, you might be wondering whether channel drains or French drains are the right solution. Homeowners in Dallas and Plano often face this question when planning a new drainage system.

Both options are effective, but each is designed for different drainage needs. In this guide, we’ll break down channel drain vs French drain systems, when to use each, and what to expect in terms of installation and French drain cost.

For expert drainage installation services in Dallas and Plano, visit Mendez Landscape & Irrigation.

Understanding the Basics of Each Drainage System

Before deciding, it’s important to understand how each system works and the types of water problems they solve.

What Are Channel Drains?

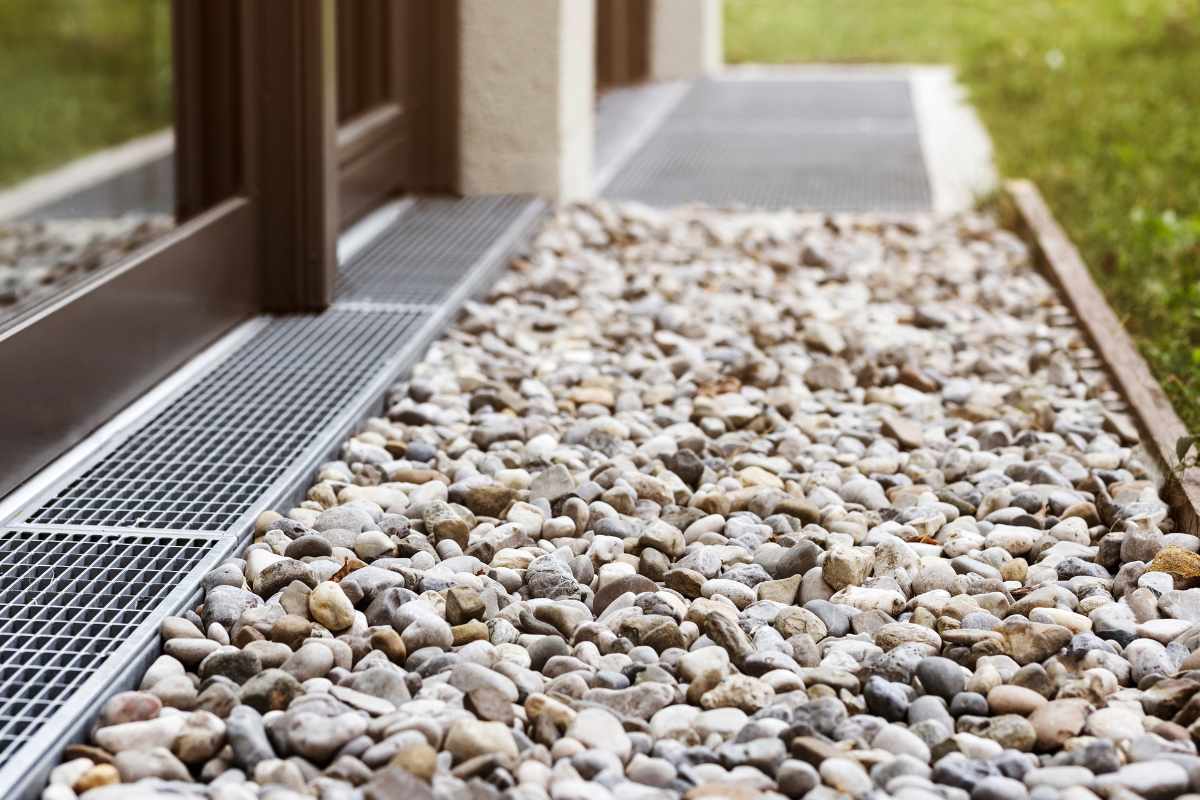

Channel drains, also called trench drains, are surface-level drainage systems that collect and redirect water away from driveways, patios, pool decks, and walkways. They consist of a long, narrow grate-covered channel that quickly captures and moves water into an underground drainage pipe system.

These are ideal for:

• Heavy surface runoff (from rain or irrigation)


• Areas with hardscaping (concrete, pavers, etc.)


• Preventing water from entering garages or basements



What Is a French Drain?

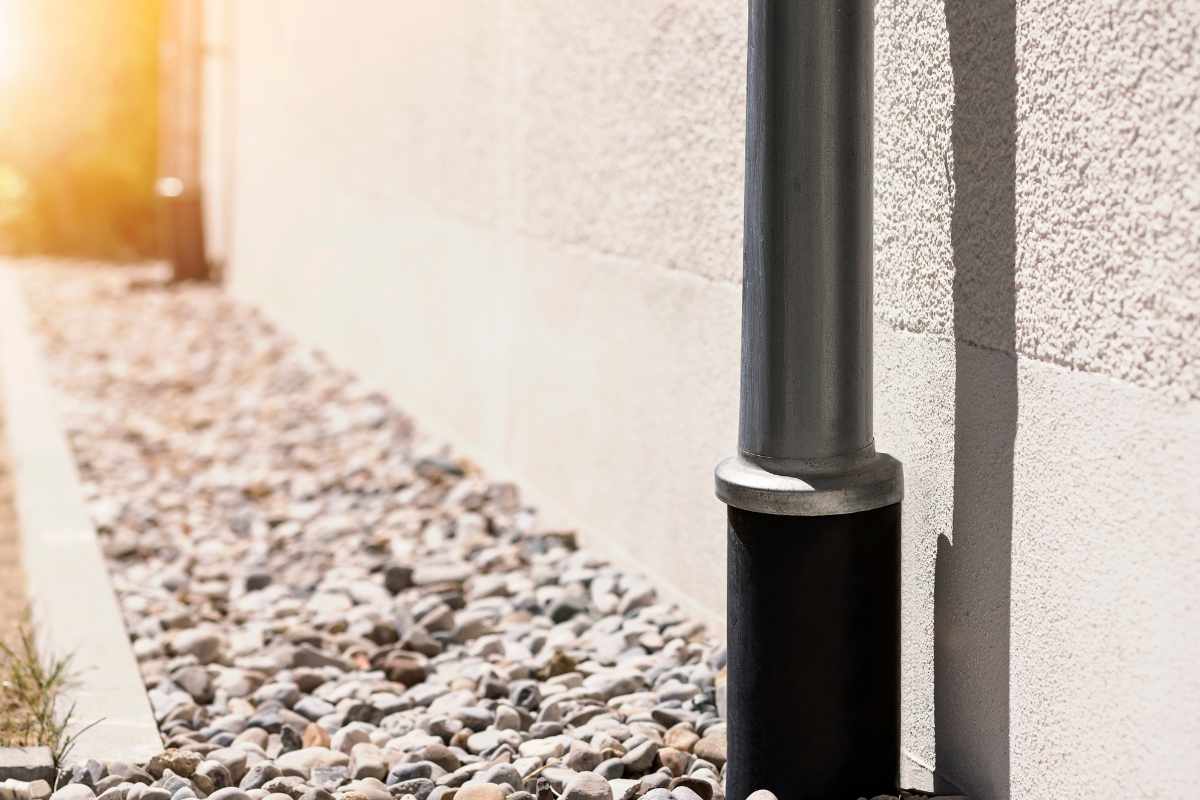

A French drain is a subsurface drainage system designed to move water that’s saturating the soil. It uses a perforated pipe surrounded by gravel and filter fabric to redirect water underground and away from structures or low spots in the yard.

This type of drain is perfect for:

• Lawn drainage problems


• Foundation protection


• Eliminating soggy areas in the yard



Channel Drain vs French Drain: Which One Do You Need?

Now that you understand the function of both, let’s compare them head-to-head in the most important categories.

1. Purpose and Placement

• Channel drains handle surface water and are commonly installed in hardscaped areas.


• French drains manage subsurface water, making them ideal for lawns or areas with poor drainage below ground level.



2. Installation Complexity

• Installing channel drains typically involves cutting or embedding into concrete or pavers, followed by connecting pipes to a drainage outlet.


• French drains require digging trenches, laying perforated pipes, adding gravel, and wrapping in fabric—a more intensive process overall.



3. Aesthetic Impact

• Channel drains are visible and can be styled to blend in with pavers or concrete surfaces.


• French drains are buried and invisible after installation, making them more discreet.



4. Cost Comparison

One of the most frequently asked questions is: How much does a French drain cost?

• French drain cost can vary widely based on size, depth, and property layout, but on average, homeowners in Dallas and Plano spend between $25 to $70 per linear foot for professional installation.


• Channel drains are generally more affordable per foot (ranging from $10 to $30 per linear foot), but final costs depend on concrete removal, grading, and finishes.

‍

5. Maintenance Needs

• Channel drains require periodic cleaning of the grates and channels to prevent clogs.


• French drains have minimal visible maintenance, but over time, sediment buildup or root intrusion can impact their efficiency.



When to Choose a Channel Drain

You should opt for a channel drain if:

• You have water pooling on hard surfaces (driveways, pool decks, patios)


• You need quick surface drainage


• You want a visible solution that complements your existing outdoor features



When to Choose a French Drain

A French drain is a better fit when:

• Water is pooling in your lawn or garden beds


• Your basement or foundation is at risk from subsurface water


• You’re dealing with poor yard drainage that soaks into the ground



Combining Both Systems for Maximum Effectiveness

In some cases, homeowners may benefit from using both systems. For example, a channel drain could be installed along the driveway, while a French drain handles yard runoff or groundwater migration. A professional drainage assessment can help determine the best combination.

Drainage Solutions for Dallas and Plano Properties

Choosing the right drainage solution is critical to protecting your property and landscaping investment. At Mendez Landscape & Irrigation, we specialize in custom drainage systems tailored to the unique soil, slope, and layout of your property in Dallas or Plano.

Whether you're exploring a new channel drain installation or want to know the true French drain cost, our team can provide a detailed consultation and efficient installation.

Final Thoughts: Don’t Let Poor Drainage Damage Your Property

If you’re stuck between a channel drain vs French drain, the answer depends on the type of water issue you’re facing—surface runoff or subsurface saturation. Both systems are highly effective when used in the right scenario. And with the help of a trusted local expert, you can get a long-term solution that protects your home and improves your landscape.

Ready to get started? Contact Mendez Landscape & Irrigation for a free quote and professional advice on the best drainage solution for your h
